3V0-32.21: Advanced Design VMware Cloud Management and Automation

An architect is designing a greenfield VMware vRealize Cloud Management solution. During the requirements gathering workshop with the customer, the future Service Owner made the following comment:

The Maximum Tolerable Downtime (MTD) for the Cloud Management solution is 1 hour.

When creating the design documentation, which design quality should be used to classify the requirements?

Manageability
Availability
Recoverability
Performance

Correct answer: C

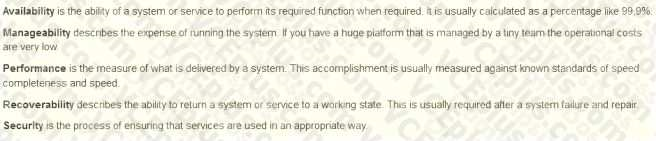

Explanation:

Reference: https://elatov.github.io/2012/08/vcap5-dcd-objective-2-3-build-availability-requirements-into-the-logical-design/

An architect has designed a vRealize Log Insight (vRLI) cluster for an organization. Details of the cluster are provided below:

3-node vRealize Log Insight cluster to collect logs for an organization NFS storage is enabled for archival data Once the NFS storage is full, which will be the resulting scenario?

vRLI will stop ingesting new data and unless free space is available, loss of data will occur.
vRLI will automatically delete the oldest archived logs, resulting in archived data loss.
vRLI will further compress the active logs to make more space available in NFS storage.
vRLI will send a notification and automatically disable log archiving.

Correct answer: D

Explanation:

Reference: https://docs.vmware.com/en/vRealize-Log-Insight/8.1/com.vmware.log-insight.administration.doc/GUIDC1E3BC21-4156-46B6-B4BB-0D396BC934C6.html

An architect is designing a greenfield Cloud Management solution. During the requirements gathering workshop with the customer, the following information was captured:

The log monitoring solution must be capable of collecting a minimum of 10,000 evets per second.
The automation solution must be capable of deploying at least 20 concurrent workloads.

When creating the design documentation, which design quality should be used to classify the requirements?

Availability
Manageability
Performance
Recoverability

Correct answer: C

As a Service Broker administrator, you have been asked to meet these requirements:

All released cloud templates must be imported to Service Broker.
Newly released cloud templates must be automatically synchronized with Service Broker.
All cloud templates must be automatically published to the service catalog.

Which two options must be configured to meet the requirements? (Choose two.)

Configure content sharing using Content Sources option
Create content source using VMware Cloud Templates option but do not configure content sharing
Create content source using CloudFormation Template option
Configure content sharing using All Content option
Create content source using VMware Cloud Templates option

Correct answer: AE

Explanation:

Reference: http://vconceptions.com/index.php/2021/10/23/vrealize-automation-service-broker-and-catalog-managementpart-1/

A company has recently completed an audit and has found that there are many virtual machines in their production environment which no longer appear to be in use. To prevent this from happening in future, the company is deploying vRealize Automation and would like all provisioned VMs to meet following requirements:

VMs to have a default lease of 90 days and no more than 365 days Lease policy can be overridden on case by case basis

Upon initial lease expiry, the VM should be kept for 10 days after which they will be destroyed Which policy design will meet the technical requirements?

Create a lease policy with the organization scope, setting 90 days lease, 365 total lease and grace period to 10 and a hard enforcement
Create a lease policy with the organization scope, setting 90 days lease, 365 total lease and grace period to 10 and a soft enforcement
Create a lease policy with the project scope, setting 90 days lease, 365 total lease and grace period to 10 and a soft enforcement
Create a lease policy with the project scope, setting 90 days lease, 365 total lease and grace period to 10 and a hard enforcement

Correct answer: C

A cloud architect is writing an implementation plan for deployment of a clustered vRealize Automation deployment that will use a third-party load balancer.

Which two steps should the architect include within the implementation plan to ensure a successful deployment of vRealize Automation? (Choose two.)

Disable all secondary nodes from the load balancer pools
Create and configure the monitoring of vRealize Automation and vRealize Orchestrator
Ensure all the SAN certificates for vRealize Suite are available
Enable all non-primary nodes on the load balancer
Turn off the health monitors or change them temporarily to default to ICMP and ensure traffic is still forwarding to the primary node

Correct answer: BC

Explanation:

Reference: https://docs.vmware.com/en/VMware-Validated-Design/6.1/sddc-deployment-of-cloud-operations-andautomation-in-the-first-region/GUID-18A6AEF4-2EF7-47B2-B421-D34156344652.html

Reference:

https://docs.vmware.com/en/VMware-Validated-Design/6.1/sddc-deployment-of-cloud-operations-andautomation-in-the-first-region/GUID-18A6AEF4-2EF7-47B2-B421-D34156344652.html

An architect is designing the deployment of vRealize Log Insight (vRLI) in their data center. The customer has the following requirements: vRLI cluster responds to multiple Virtual IP Addresses (VIPs) Each event message received from a VIP is associated with a tag.

Which two design decisions would the architect make to achieve the requirements? (Choose two.)

Configure a CSV file to use with VIP tags.
Configure a list of static tags (key=value) for an integrated load balancer VIP, so that each event message received from a VIP is annotated with a tag.
Each node should have at least one network interface on the same subnet as that of a VIP.
Configure a list of dynamic tags (key=value) for an integrated load balancer VIP, so that each event message received from a VIP is annotated with a tag.
Each node should have at least one network interface on a different subnet as that of a VIP.

Correct answer: BC

Explanation:

Reference: https://docs.vmware.com/en/vRealize-Log-Insight/4.8/com.vmware.log-insight.administration.doc/GUID-7B981536-F80C-458F-A196-2AFD4B1D33C2.html

Reference:

https://docs.vmware.com/en/vRealize-Log-Insight/4.8/com.vmware.log-insight.administration.doc/GUID-7B981536-F80C-458F-A196-2AFD4B1D33C2.html

An architect is designing a new VMware vRealize Cloud Management solution.

During the requirements gathering workshop, the customer made the following comments:

The monthly uptime target of the cloud management solution must be 99.9%.
All components of the cloud management solution must be deployed with a N + 1 redundancy.

When creating the design documentation, how should these requirements be classified?

Recoverability
Manageability
Availability
Performance

Correct answer: C

A customer has asked to have a vSphere cluster and Cloud Zone dedicated for Cloud Template development. The customer is going use the Cloud.vSphere.Machine compute resource type and they have been unable to quantify values for Favor Mappings during a requirements gathering exercise.

Which Flavor Mapping decision should be made for the Cloud Zone?

Create multiple Flavor Mappings with incremental sizes
Flavor Mappings are not needed for the vSphere Cloud Zone
Create a single Flavor Mapping with a modest size
Create a single Flavor Mapping with the maximum size supported by vSphere

Correct answer: A

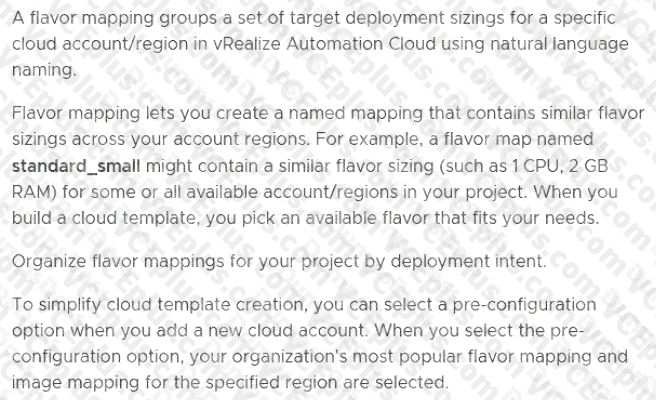

Explanation:

Reference: https://docs.vmware.com/en/vRealize-Automation/services/Using-and-Managing-Cloud-Assembly/GUIDB3DC68C3-D1AF-4208-9C0B-C3B222B234D5.html

Reference:

https://docs.vmware.com/en/vRealize-Automation/services/Using-and-Managing-Cloud-Assembly/GUIDB3DC68C3-D1AF-4208-9C0B-C3B222B234D5.html

What level of design will contain an automation platform, an operational monitoring platform, and a desktop platform?

Physical Design
Conceptual Design
Detailed Design
Logical Design

Correct answer: D
