Question 1

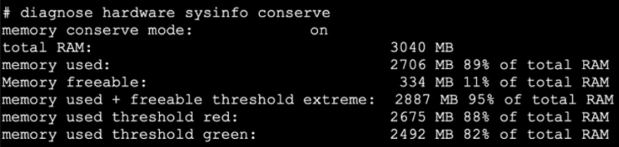

Refer to the exhibit, which contains the output of a debug command.
If the default settings are in place, what can you conclude about the conserve mode shown in the exhibit?
- FortiGate is currently blocking new sessions that require flow-based or proxy-based content inspection.
- FortiGate is currently blocking all new sessions regardless of the content inspection requirements or configuration settings because of high memory use.
- FortiGate is currently allowing new sessions that require flow-based or proxy-based content inspection but is not performing inspection on those sessions.
- FortiGate is currently allowing new sessions that require flow-based content inspection and blocking sessions that require proxy-based content inspection.
Correct answer: C
Explanation:
C: 8 - MostedD: 3 C: 8 - MostedD: 3
Question 2
Refer to the exhibit, which shows the omitted output of a real-time OSPF debug.
Which statement is false?
- A password has been configured on the local OSPF router but is not shown in the output.
- The Hello packet is being sent from an OSPF router with ID 0.0.0.112.
- The two FortiGate devices attempting adjacency are in area 0.0.0.0.
- One FortiGate device is configured to require authentication, while the other is not.
Correct answer: A
Explanation:
A: 7 - MostedD: 4 A: 7 - MostedD: 4
Question 3
Which two conditions would prevent a static route from being added to the routing table? (Choose two.)
- The next-hop IP address is unreachable.
- The interface specified in the route configuration is down.
- The route has a lower priority value than another route to the same destination.
- There is another other route to the same destination, with a lower distance.
Correct answer: BD
Explanation:
BD: 5 - Mosted BD: 5 - Mosted
Question 4

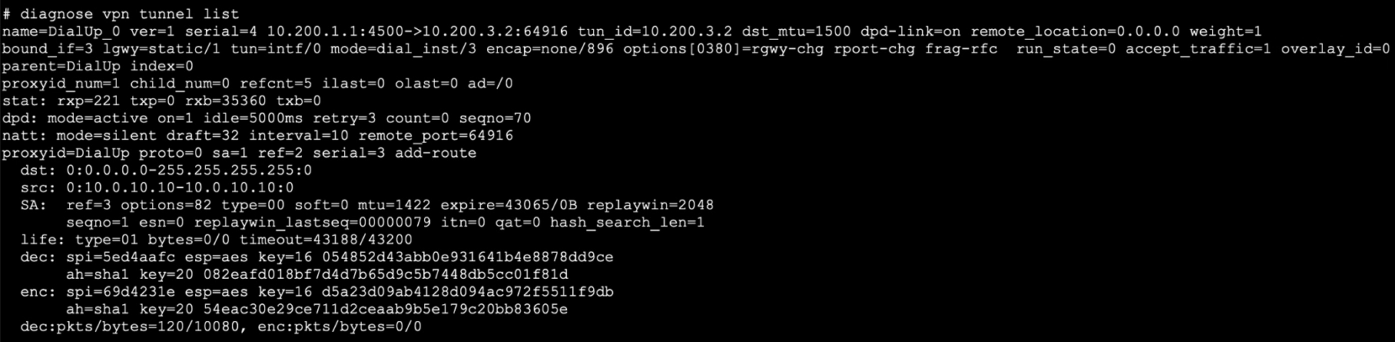

Refer to the exhibit, which contains the output of diagnose vpn tunnel list.
Which command will capture ESP traffic for the VPN named DialUp_0?
- diagnose sniffer packet any 'host 10.0.10.10'
- diagnose sniffer packet any 'ip proto 50'
- diagnose sniffer packet any 'esp and host 10.200.3.2'
- diagnose sniffer packet any 'port 4500'
Correct answer: D
Explanation:
C: 1D: 4 - Mosted C: 1D: 4 - Mosted
Question 5
What are two functions of automation stitches? (Choose two.)
- You can configure automation stitches on any FortiGate device in a Security Fabric environment.
- You can create automation stitches to run diagnostic commands and attach the results to an email message when CPU or memory usage exceeds specified thresholds.
- An automation stitch configured to execute actions sequentially can take parameters from previous actions as input for the current action.
- You can set an automation stitch configured to execute actions in parallel to insert a specific delay between actions.
Correct answer: BC
Explanation:
AB: 1BC: 6 - MostedBD: 1 AB: 1BC: 6 - MostedBD: 1
Question 6

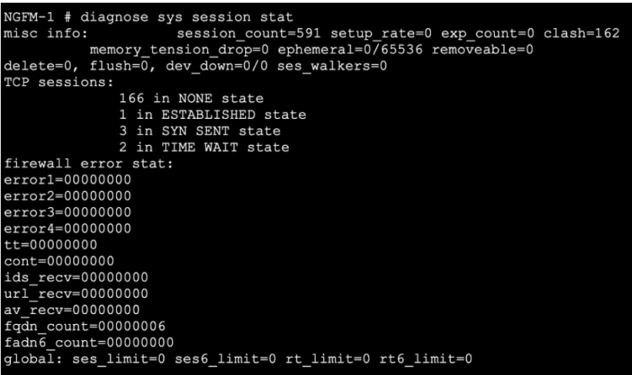

Refer to the exhibit, which shows the output of diagnose sys session stat.
Which statement about the output shown in the exhibit is correct?
- All the sessions in the session table are TCP sessions.
- 162 sessions have been deleted because of memory page exhaustion.
- There are 166 TCP sessions waiting to complete the three-way handshake.
- There are two sessions that have not been removed in case of any out-of- order packets that arrive.
Correct answer: D
Explanation:
D: 4 - Mosted D: 4 - Mosted
Question 7
What is the diagnose test application ipsmonitor 5 command used for?
- To disable the IPS engine
- To provide information regarding IPS sessions
- To restart all IPS engines and monitors
- To enable IPS bypass mode
Correct answer: D
Explanation:
D: 5 - Mosted D: 5 - Mosted
Question 8
Refer to the exhibit, which contains the partial output of the get vpn ipsec tunnel details command. Based on the output, which two statements are correct? (Choose two.)
- Anti-replay is enabled.
- The npu_flag for this tunnel is 03.
- The npu_flag for this tunnel is 02.
- Different SPI values are a result of auto-negotiation being disabled for phase 2 selectors.
Correct answer: AB
Explanation:
AB: 9 - Mosted AB: 9 - Mosted
Question 9

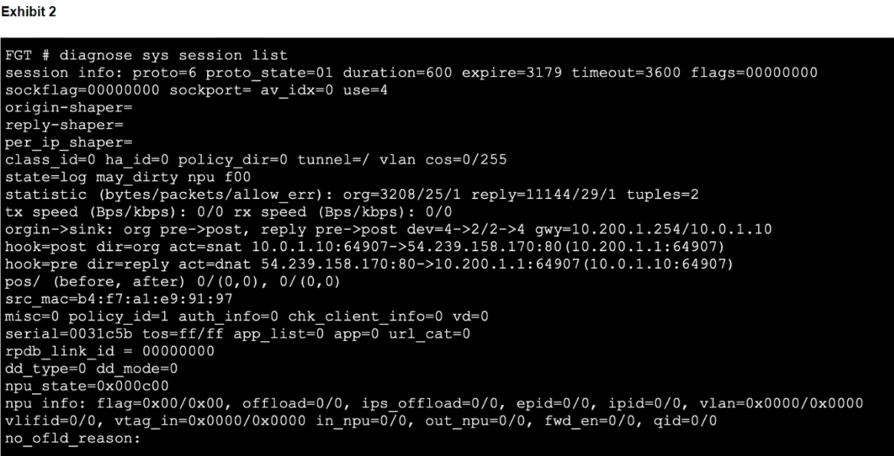

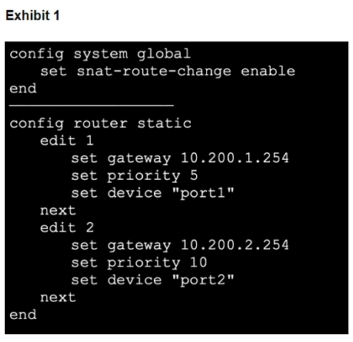

Refer to the exhibits, which show the configuration on FortiGate and partial session information for internet traffic from a user on the internal network.
If the priority on route ID 2 were changed from 10 to 0, what would happen to traffic matching that user session?
- The session would be deleted, and the client would need to start a new session.
- The session would remain in the session table, but its traffic would now egress from both port1 and port2.
- The session would remain in the session table, and its traffic would egress from port2.
- The session would remain in the session table, and its traffic would egress from port1.
Correct answer: A
Explanation:
A: 3 - Mosted A: 3 - Mosted
Question 10

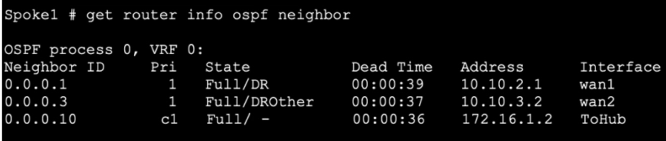

Refer to the exhibit, which shows the output of get router info ospf neighbor.
What can you conclude from the command output?
- The local FortiGate is not a DROther.
- All neighbors are in area 0.0.0.0.
- The local FortiGate is the BDR.
- The network type connecting the local Fortigate and OSPF neighbor 0.0.0.10 is point-to-point.
Correct answer: D
Explanation:
D: 3 - Mosted D: 3 - Mosted
