Demo Questions

Question 1

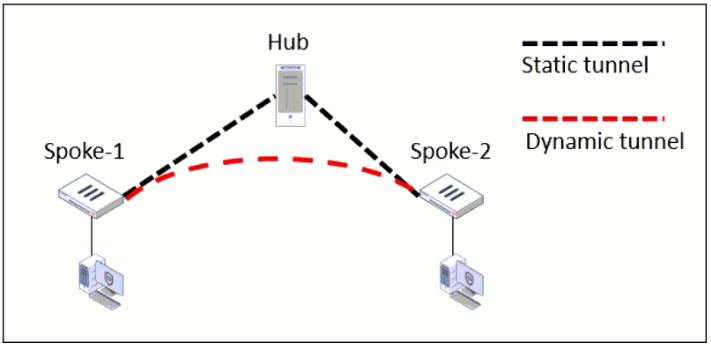

Refer to the exhibit, which shows an ADVPN network.
The client behind Spoke-1 generates traffic to the device located behind Spoke-2.
Which first message does the hub send to Spoke-1 to bring up the dynamic tunnel?
  1. Shortcut forward
  2. Shortcut reply
  3. Shortcut query
  4. Shortcut offer
Correct answer: D
Question 2
Which configuration can be used to reduce the number of BGP sessions in an IBGP network?
  1. route-reflector-peer enable
  2. route-reflector-server enable
  3. route-reflector-client enable
  4. route-reflector enable
Correct answer: C
Question 3

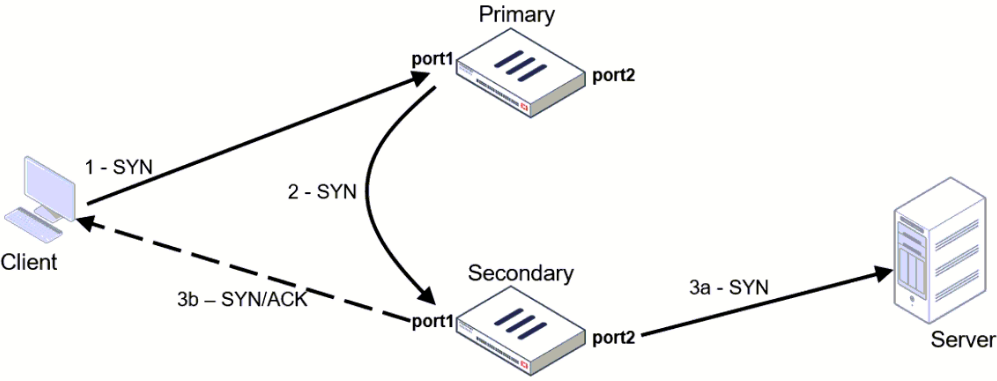

Refer to the exhibit, which contains an active-active load balancing scenario.
During the traffic flow, the primary FortiGate forwards the SYN packet to the secondary FortiGate.
What is the destination MAC address or addresses when packets are forwarded from the primary FortiGate to the secondary FortiGate?
  1. Secondary virtual MAC port1 then physical MAC port1
  2. Secondary virtual MAC port1
  3. Secondary physical MAC port1
  4. Secondary physical MAC port1 then virtual MAC port2
Correct answer: C
Question 4
Refer to the exhibit, which provides information on BGP neighbors.
What can you conclude from this command output?
  1. You must change the AS number to match the remote peer.
  2. BGP is attempting to establish a TCP connection with the BGP peer.
  3. The bfd configuration is set to enable.
  4. The routers are in the same area ID of 0.0.0.0.
Correct answer: B
Question 5
You want to have faster detection for OSPF.
Which parameter should you enable on both connected FortiGate devices?
  1. distribute-list-in
  2. rfc1583-compatible
  3. restart-on-topology-change
  4. bfd
Correct answer: D
Question 6

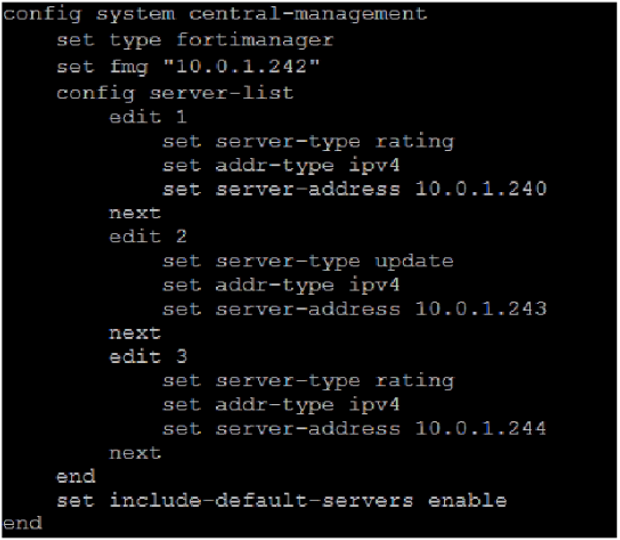

Refer to the exhibit, which shows a central management configuration.
Which server will FortiGate choose for web filter rating requests, if 10.0.1.240 is experiencing an outage?
  1. 10.0.1.244
  2. 10.0.1.242
  3. Public FortiGuard servers
  4. 10.0.1.243
Correct answer: A
Question 7
You created a VPN community using VPN Manager on FortiManager. You also added gateways to the VPN community. Now you are trying to create firewall policies to permit traffic over the tunnel; however, the VPN interfaces do not appear as available options.
What step must you take to resolve this issue?
  1. Refresh the device status using the Device Manager so that FortiGate populates the IPSec interfaces.
  2. Install the VPN community and gateway configuration on the FortiGate devices so that the VPN interfaces appear on the Policy Objects on FortiManager.
  3. Configure the phase 1 settings in the VPN community that you didn’t initially configure. FortiGate automatically generates the interfaces after you configure the required settings.
  4. Create interface mappings for the IPsec VPN interfaces before you use them in a policy.
Correct answer: B
Question 8
Which two statements about the BFD parameter in BGP are true? (Choose two.)
  1. It detects only two-way failures.
  2. The two routers must be connected to the same subnet.
  3. It allows failure detection in less than one second.
  4. It is supported for neighbors over multiple hops.
Correct answer: CD
Question 9
Refer to the exhibit which shows information about an OSPF interface.
What two conclusions can you draw from this command output? (Choose two.)
  1. The interfaces of the OSPF routers match the MTU value that is configured as 1500.
  2. NGFW-1 is the designated router.
  3. The port3 network has more than one OSPF router.
  4. The OSPF routers are in the area ID of 0.0.0.1.
Correct answer: AC
Question 10
Which two statements about metadata variables are true? (Choose two.)
  1. The metadata format is $<metadata_variable_name>.
  2. You create them on FortiGate.
  3. They can be used as variables in scripts.
  4. They apply only to non-firewall objects.
Correct answer: AC
Question 11

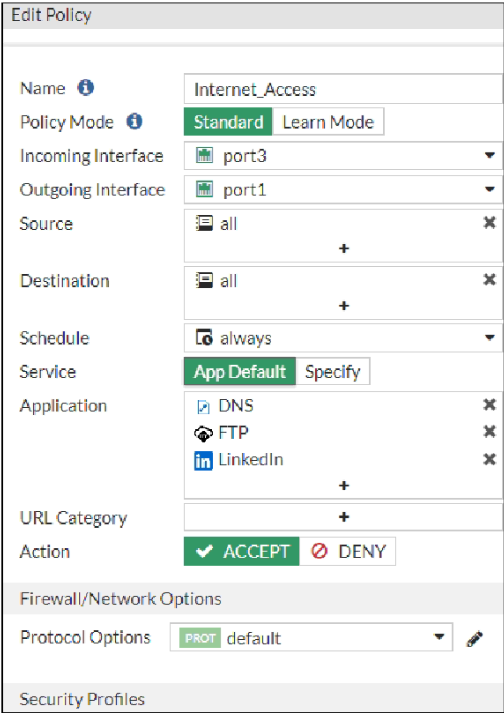

Refer to the exhibit, which contains a partial policy configuration.
Which setting must you configure to allow SSH?
  1. Specify SSH in the Service field.
  2. Select an application control profile corresponding to SSH in the Security Profiles section.
  3. Include SSH in the Application field.
  4. Configure port 22 in the Protocol Options field.
Correct answer: C
